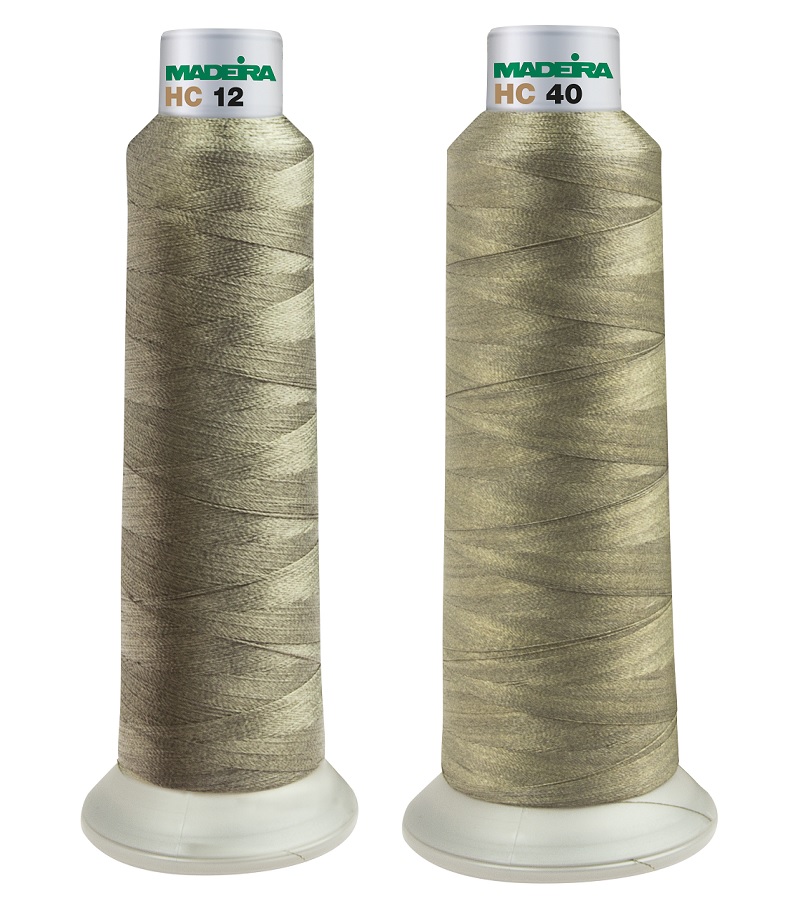

Art. 420 / 410 Best electrical connections with highly conductive thread in smart textiles
HC - HIGH CONDUCTIVE
In depth embroidery know-how and cutting-edge manufacturing technology transform Statex's well-known Shieldex yarn into a state-of-the-art embroidery thread with unrivaled machining performance. This polyamide thread with durable 100% silver plating around every single filament offers high conductivity and optimized contact points and circuit paths. Also usable as sewing thread, it is the smart choice for innovative textiles in sportswear, workwear, medical, fashion, automotive, home textiles or many other e-textile applications.
1000 m Art. 420 100 % polyamide

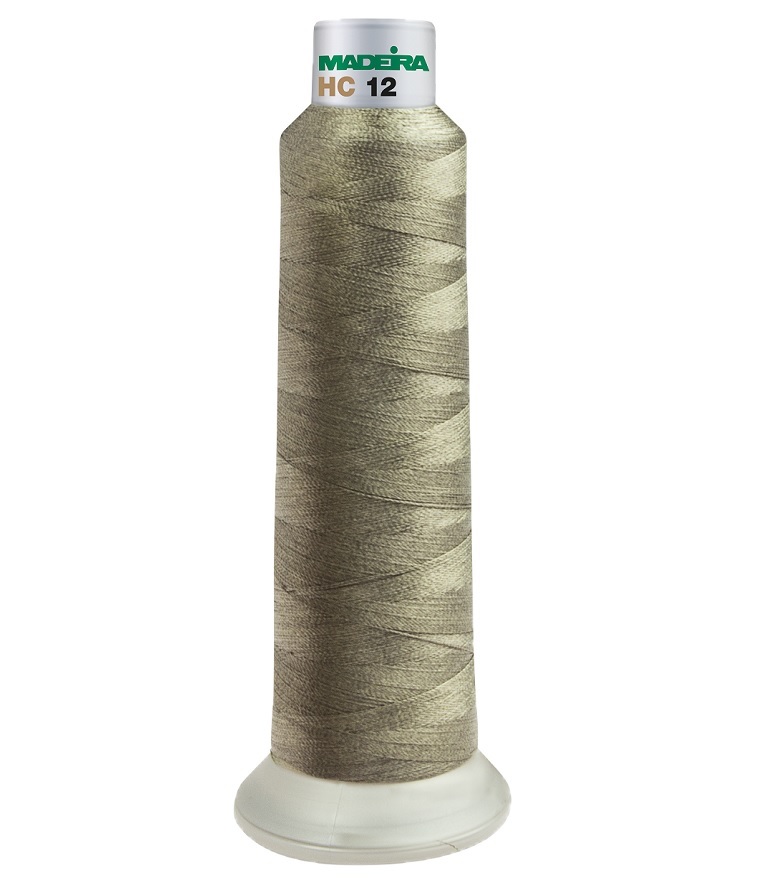

Heavy fully silver-plated dtex 235x2 embroidery thread with resistance < 100 Ohm/m. Suitable for robust circuitry and all applications where a very low resistance is required. For best sewing results we recommend the use of needle size #100/16

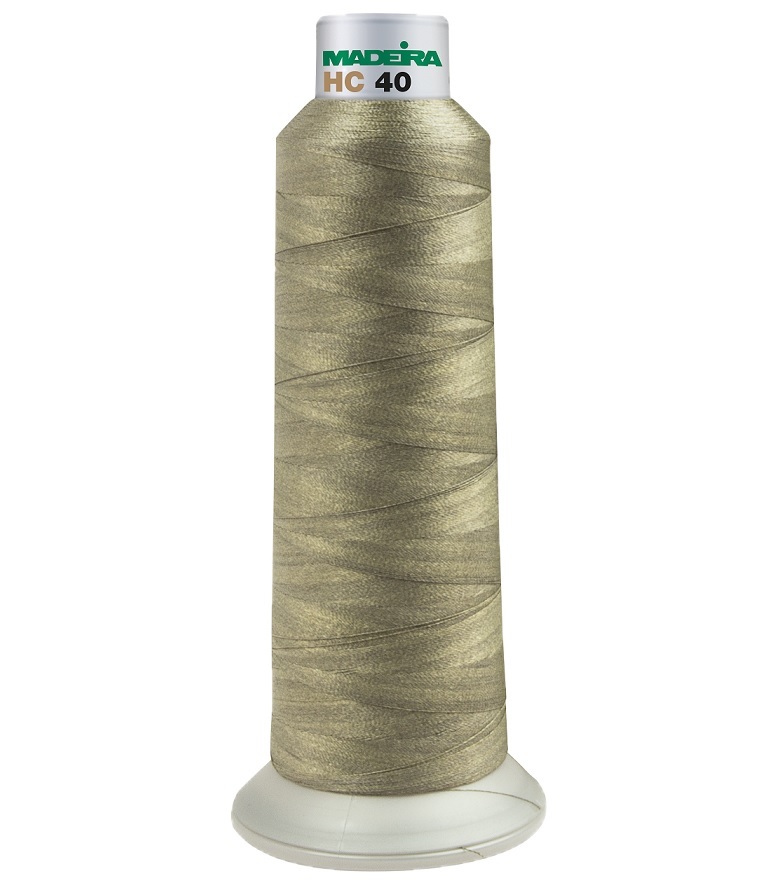

The all-rounder among conductive threads. Easy to use dtex 117x2 embroidery thread for standard 75/11 or 80/12 needles. The resistance of <300 Ohm/m can be varied by using conductive bobbin thread or varying the stitches. For best sewing results we recommend the use of needle size #75/11 - 80/12
